Cleanroom Wall

Innovus Cleanroom Technologies

Cleanroom Wall

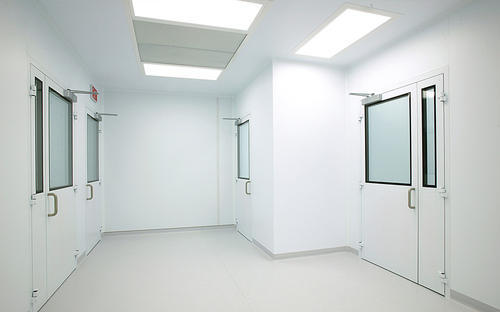

Modular cleanroom partition products have been developed for use by, and in conjunction with leading cleanroom designer and end users. Clean Room Systems from Innovus can be applied to any clean room facility or manufacturing setup requiring controlled environment. These systems can be integrated with new as well as existing systems. Modular & simplified construction methods are used for reducing overall construction time and cost. Features. Connection between partition and existing fabric will utilise our pre-formed closing channel and special detail can be produced where required, again with various coving options available to meet specification. Integration between partition head and ceiling is achieved by utilization of standard top channel together with various coving option, if required. The partition walls can be designed to facilitate and incorporate the various design principles, utilised in laminar and non- laminar airflow cleanrooms.

Specification & Features:

Types of Panel Progressive / Non Progressive
Panel Thickness 50 mm / 80 mm / 100 mm
Infill PUF (40 kg/M3) / Rockwool (96 kg/M3 ) / Honeycomb Paper
Size Range 1200max width to 4200mm Length
Sheet Thickness 0.6 / 0.8 / 1.0 mm
Sheet Finish Pre-Painted GI (PPGI) / Powder Coated GI (PCGI) / SS 304
Panel Connection Aluminum / GI interconnecting profile
Surface Finish Pure / Epoxy Polyester Powder coated as per RAL colours, SS Finish
